X Log CAN/RS232 200 Kit

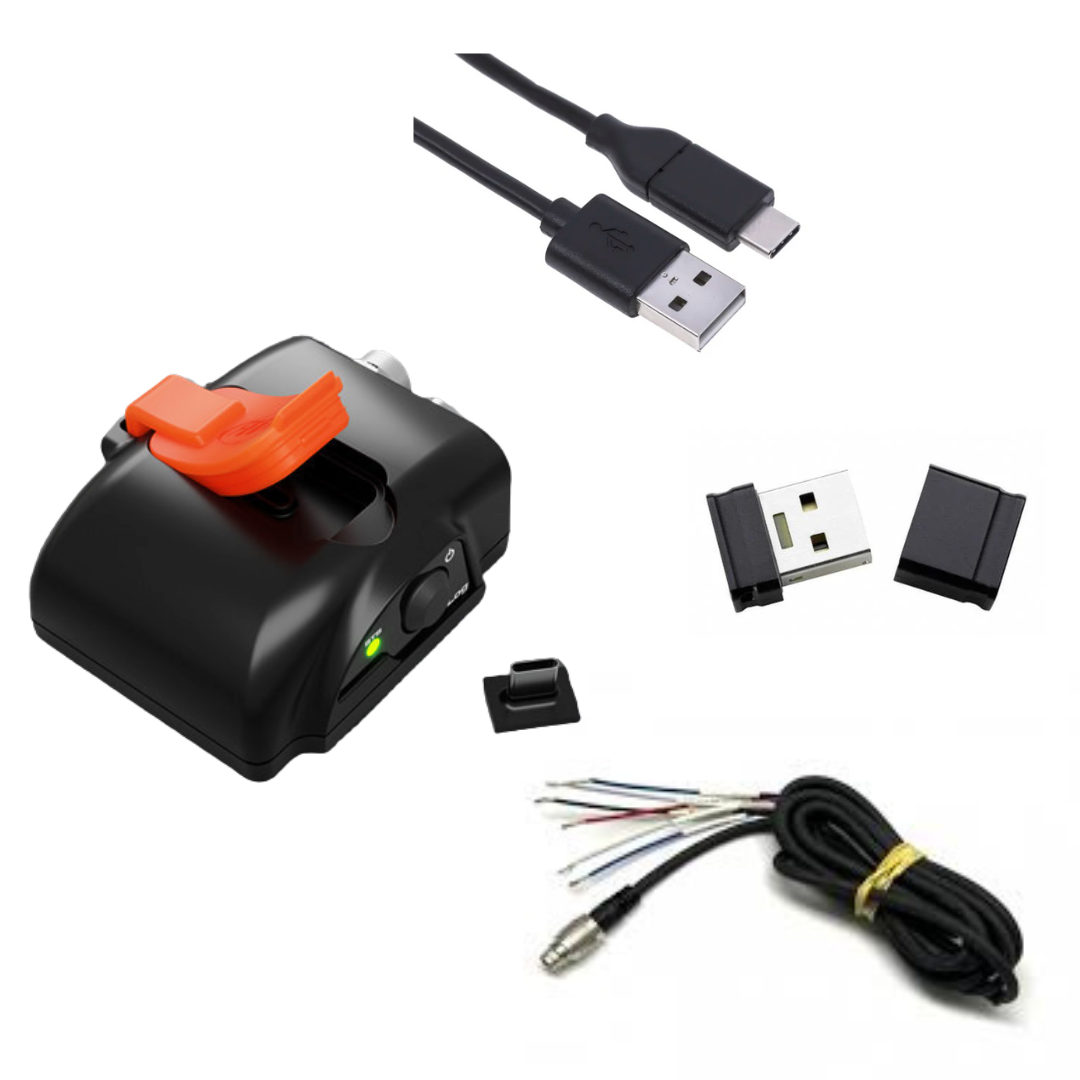

Components of the kit:

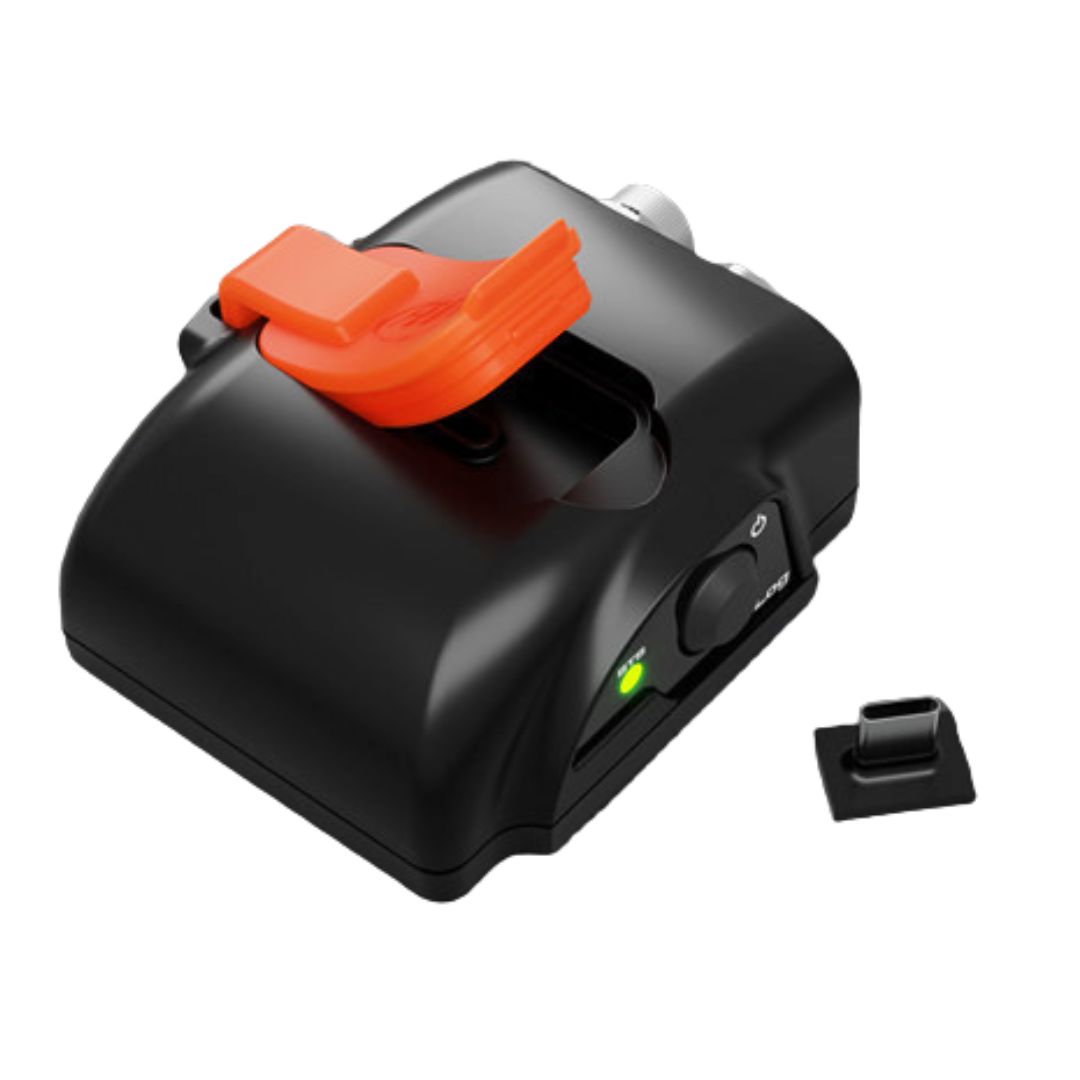

X Log

Mini USB Drive 16 GB

CAN/RS232/External power cable, 200 cm

USB 2.0 Cable A-Type to C-Type, 200 cm

Main features

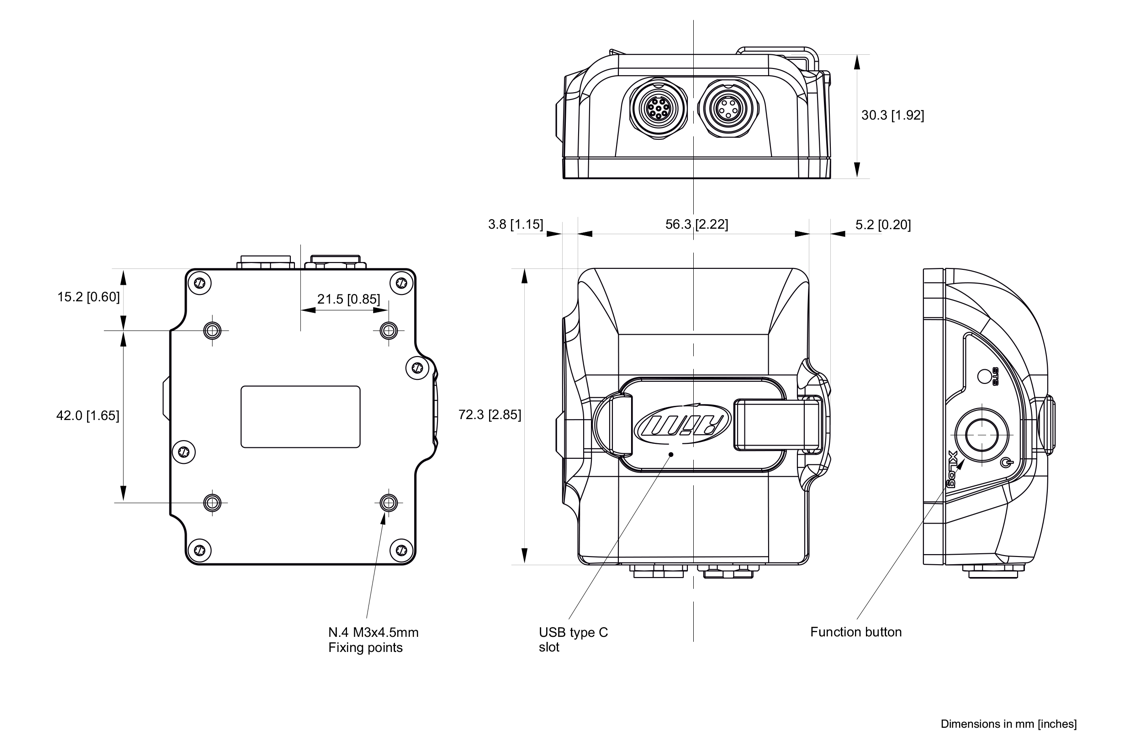

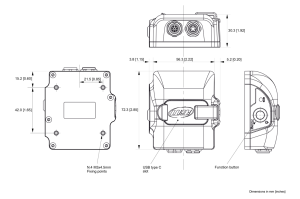

XLog is a compact (only 72.3×65.3×30.3 mm), rugged, and waterproof data logger that records data from your ECU, the advanced built-in GPS, and the 6-axis IMU.
Connectivity options include Wi-Fi, USB-C, and Bluetooth.
It features 4 GB of internal memory and also includes a removable 16 GB memory key for additional storage space. Its built-in 1500 mAh lithium-ion battery ensures up to 10 hours of operation.

XLog calculates and records:

• Lap times

• Sector times

• Vehicle position and speed

• 3D acceleration and gyroscope

ECU data via CAN, K-Line, or RS232 connections.
You can select your car/bike’s protocol from thousands of predefined protocols, or easily develop one of your own.

Digital RPM input from the coil primary (150–400 V) or from a square wave (8–50 V) when no ECU connection is available.

XLog also provides:

• A second CAN bus to connect an external device or an AiM expansion.

• CAN expansions to add Lambda controllers, analog inputs, and professional cameras, enabling advanced functionality from your XLog.
