Aim Software Manual (TUNER-USER LICENSE)

AIR INTAKE VENTURI

How to mount Air Venturi KIt

VORTEX ECU MAPS AND carburation trims

For AiM ECUs you can find the guide HERE or download the PDF below:

How To Zero TPS Featured

How to zero TPS an ECU

For AiM ECUs you can find the guide HERE or download the PDF below:

For Vortex ECUs you can find the guide HERE or download the PDF below:

Rev Guardian

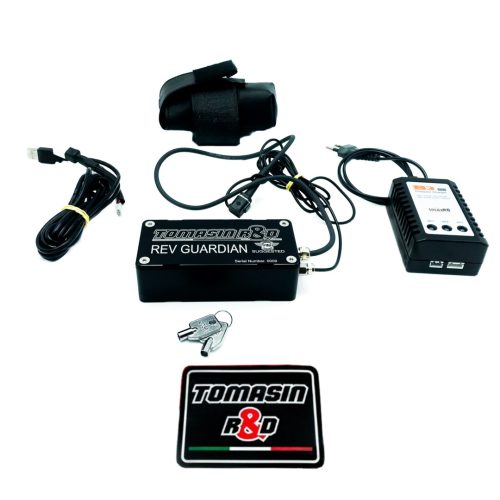

How to mount and use a Rev Guardian

You can find the guide HERE or download the PDF version HERE.

HOW TO LOAD THE MAP INTO YOUR AIM ECU (FOR T500 BUT AS THE SAME AS FOR ANY AIM ECU)

*******************************************************
VIDEO TUTORIAL TO UPLOAD MAPShttps://www.youtube.com/watch?v=9-puRndE3tE&t=17s
Remember to do the ZERO TPS after every programming.
*******************************************************
Follow this process:

– download the map from our site > download area OR save the one we sent you. > https://www.tomasinracing.net/docs/ choose to see the maps available;
– create a folder on the desktop for the maps (we suggest creating sub-folders with the dates);
– connect the motorbike’s control unit or, if disconnected from the motorbike, only the control unit, check that at the bottom left the status changes to “connected”;
– open the latest version of “Spark” > download Spark here:
https://www.aim-sportline.com/en/sw-fw-download.htm

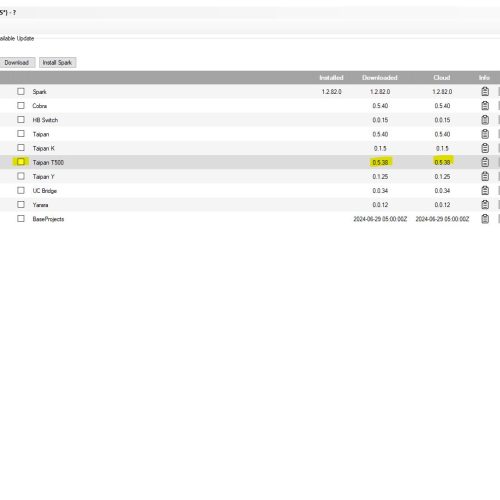

– download the latest firmware version from the “Spark” cloud (cloud icon at the top right).
Do not move the Firmware from the Spark motherboard and check if it is already programmed, if it is not programmed watch the dedicated video (video 2);
– open the map previously downloaded in the dedicated box at the top left;
– press the connect button;
– activate the control unit programming with the dedicated button, wait for the end of programming message and press OK
– disconnect the control unit with the dedicated button;
– disconnect the PC from the motorbike or from the control unit if removed from the motorbike;
– carry out the TPS reset procedure with the motorcycle buttons as shown in the video > https://www.youtube.com/watch?v=R4i1VFZLaUg

T500 ECU MAP TABLE

You can find the T500 Map Table in the links below :

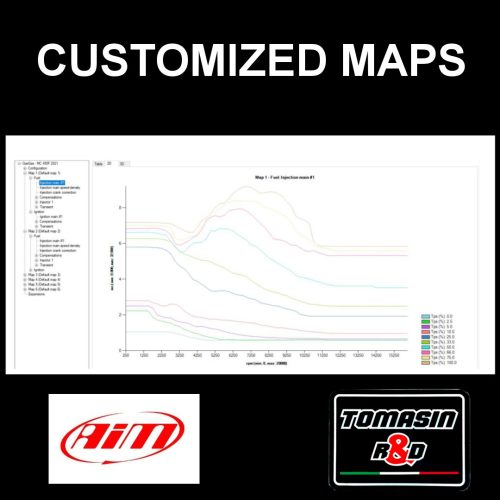

Mappe AiM - Tomasin R&D

AiM Race Map Table

You can find the AiM Race Map Table in the links below :

Base-map-made-by-TomasinRD

Vortex Race Map Table

You can find the VORTEX Race Map Table in the links below :

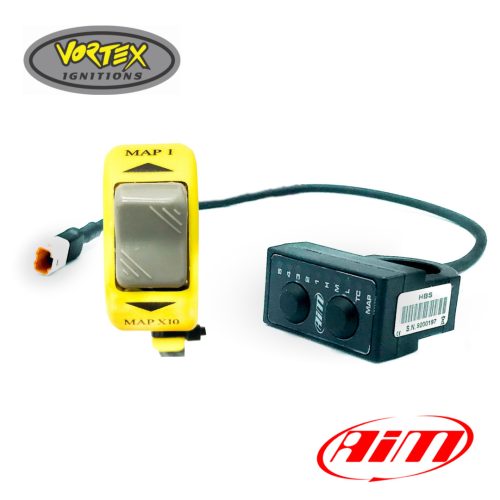

Switch Map AiM e Vortex

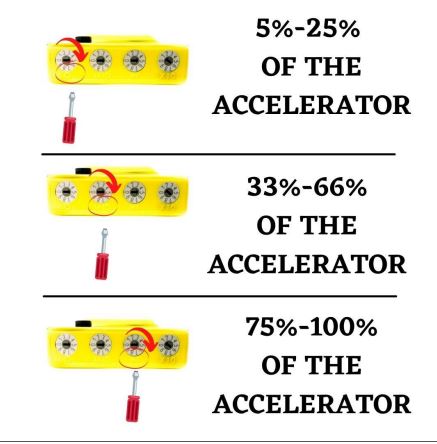

Switch Map User Guide

You can find the VORTEX Switch Map User Guide HERE or download the PDF HERE.

You can find the AIM Switch Map User Guide below :

IMPORTANT: for make the changes happen the bike NEED TO BE IN GEAR  and after the modification accelerate the bike over 3000 rpm, like that the system save your changes.
